Stairlifts Direct - Pioneers in the recycled, or re-manufactured curved stairlift market.

Key Features

  • Battery powered for smooth quiet operation
  • Push button or joystick operation
  • Full remote control
  • Automatic slowing on bends ensures a comfortable ride
  • Manual or powered hinge available
  • Swivel seat for ease of transfer on to top landing



Optional Extras

  • Powered hinged track
  • Drop nose track
  • Powered 1 or 2 way swivel seat



We Supply

  • Lift Manufacturers
  • Stairlift Outlets
  • Mobility Shops
  • Local Authorities

Re-manufactured Curved Stairlifts

Our curved stairlift runs along slim, twin rails that are tailor-made to fit your stairs and ensure the tightest fit possible. The rail is also attached to the stairs, not to the wall, so installation is quick and clean. The twin rails are available in a pearl colour as standard.

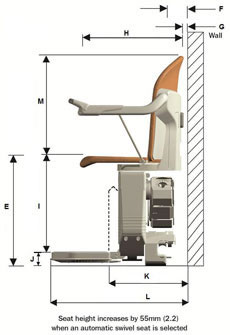

stairlift side elevation
Dimensions
A - Total width 24.4" 621mm
B - Total width between arms 19.4" 493mm
C - Folding seat width 18" 458mm
D - Footrest width 11.6" 295mm
E - Floor to top of seat 22.2-25.2" 564-640mm
F - Wall to inside edge of rail 3.7" 94mm
G - Wall to back of seat 1" 25mm
H - Seat depth 11.6/17.5" 295/445mm
I - Seat to footrest height 18.5" 470mm
J - Floor to top of footrest 3.7-6.7" 94-170mm
K - Width when folded 16" 405mm
L - Open width to edge of footplate 26.7" 679mm
M - Seat back height (Solus) 16.5" 420mm
M - Seat back height (Sofia) 19.7" 500mm
N - Rail tube diameter 1.8" 44.5mm
O - Distance between tubes 11.2" 285mm



stairlift front elevation
